288245SNAP S++B1 - Width of Hole21 - 23.4F1 - Panel Thickness1.4 - 2.2G1 - Height of Cavity12284508Cinch Wing Locked XLB1 - Width of Hole22.5 - 23.5F1 - Panel Thickness3.35 - 4.35G1 - Height of Cavity13272512Clamp adaptorF1 - Panel Thickness1.5 - 2H1 - Stud Height50H2 - Stud Height10 - 15271397Slot FS6 S269609Wedge FS7B1 - Width of Hole7.2 - 7.4L1 - Length of Hole27.2263245Cinch Wing Locked SB1 - Width of Hole22.5 - 23.5F1 - Panel Thickness2.05 - 3.05G1 - Height of Cavity13263244Cinch Wing SB1 - Width of Hole22.5 - 23.5F1 - Panel Thickness2.05 - 3.65G1 - Height of Cavity13263243Cinch Wing Locked LB1 - Width of Hole22.5 - 23.5F1 - Panel Thickness3.05 - 4.05G1 - Height of Cavity13263242Cinch Wing LB1 - Width of Hole22.5 - 23.5F1 - Panel Thickness3.05 - 4.65G1 - Height of Cavity13258841Cinch Locked XSB1 - Width of Hole22F1 - Panel Thickness2.1 - 2.95G1 - Height of Cavity13252387SNAP S+B1 - Width of Hole21.2 - 23.4F1 - Panel Thickness1.4 - 2.2G1 - Height of Cavity12250381Cinch Locked LB1 - Width of Hole19.7 - 20.3F1 - Panel Thickness3.3 - 4.15G1 - Height of Cavity13248217Cinch Locked XLB1 - Width of Hole21.5 - 22.5F1 - Panel Thickness3.8 - 4.65G1 - Height of Cavity13247433Cinch Locked SB1 - Width of Hole22F1 - Panel Thickness3.05 - 4.05G1 - Height of Cavity13247413Slot FS6 L244113SNAP SB1 - Width of Hole21.2 - 23.4F1 - Panel Thickness1.4 - 2.2G1 - Height of Cavity12243648Cinch LB1 - Width of Hole21.7 - 22.3F1 - Panel Thickness3 - 3.8G1 - Height of Cavity20

17 of 17

252387

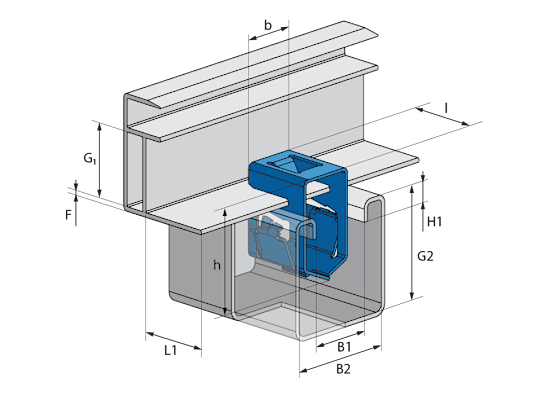

SNAP S+

Pre-clipped onto module frame, single-step push-in fastening. Anti-theft protection. Adapted to small and large rail sections.

Tile, flat & tin roof

Tile, flat & tin roof

Module types: Standard aluminum framed module

Rail type: Steel U-Rail

Module mount layout: H

B1 - Width of Hole

21.2 - 23.4

F1 - Panel Thickness

1.4 - 2.2

G1 - Height of Cavity

12

H1 - Stud Height

6.5 - 7.7

L1 - Length of Hole

16

Material

Hardened Carbon Steel

Coating

Aluminum Enriched Zinc Flake

Grounding

subject to conditions

Installation tool

Mallet
