243648
Cinch L
Contact us
Key features

Single-step fastening. Mounting from underneath the module.

Application
Tile, flat & tin roof
Tile, flat & tin roof
Carport & shed roof
Carport & shed roof
Fixed tilt
Fixed tilt
Assembly configuration

Module types: Standard aluminum framed module

Rail type: Steel & Aluminum Hat rail

Module mount layout: H/V

Certifications
UL 2703 UL 2703
Downloads

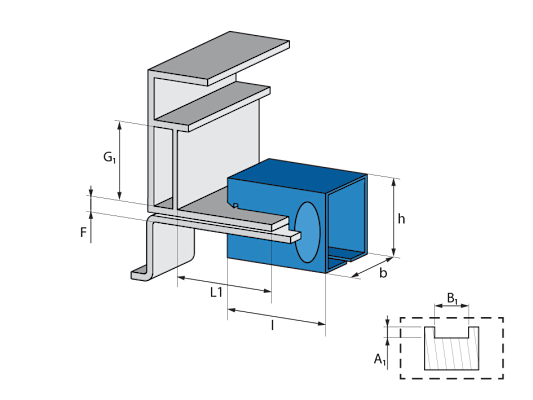

Dimensions
Tech specs (mm)
B1 - Width of Hole
21.7 - 22.3
F1 - Panel Thickness
3 - 3.8
G1 - Height of Cavity
20
L1 - Length of Hole
16
Material
Hardened Carbon Steel
Coating
Aluminum Enriched Zinc Flake
Installation tool
Mallet
