208738
Clip for several cables and strands
Contact us
Description

Clip for several cables and strands

Key features

- Tool free installation. - Galvanic couple reduced with aluminum. - with rolled edges to prevent damage to the sheath - Instant application achieved with the barb design. - Possibility to re-open the clips. - Can fit on module edges or on structure.

Possibility to re-open: Adapter unchanged - New cable tie

Cable orientation: Multi-directional

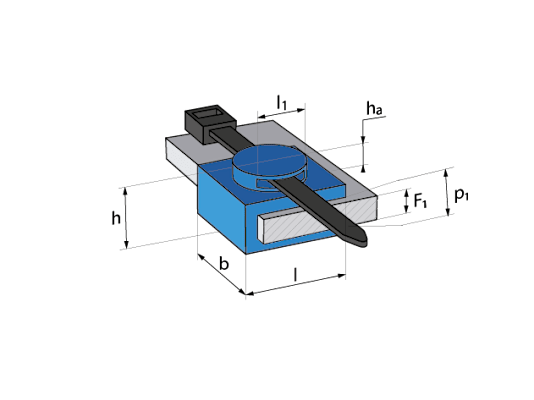

Dimensions
Tech specs (mm)
F1 - Panel Thickness
1.5 - 4
Minimum edge length
12.8
Material
Hardened Carbon Steel
Surface treatment
Metal: combines an inorganic zinc-rich basecoat with aluminum-rich organic topcoat
Corrosion resistance
Metal / No red rust after 720 hours of neutral salt spray according to EN ISO 9227:2012
